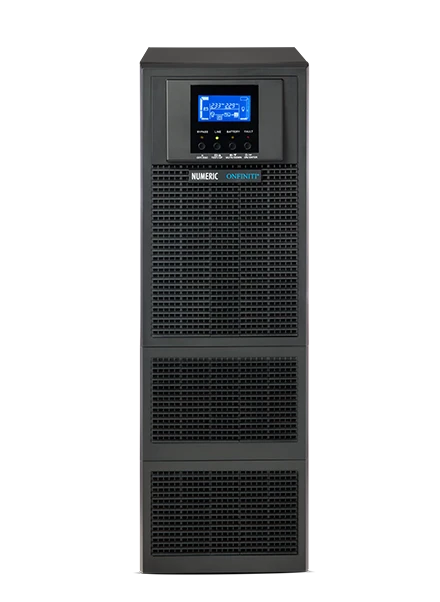

Numeric Online Ups Onfiniti? 10 kVA FMI

Warranty - 2 Years Warranty

   :

₹ 150,000

  • Brand New & 100% Genuine
  • Credit card, Debit card, Google Pay, Paytm and Netbanking
  • Delivered in same day
  • Free Delivery within 20 km
  • Exchange for old batteries
  • Delivered in 24 hours
  • Delivery Charges Applicable





Review this product

Write a Review

General
  • Output power capacity: 8000 W
  • Technology: On-line, double conversion, VFI-SS-111
  • OVCD: Available
  • Waveform: Sinusoidal
  • Display Panel: LCD Display + LED Panel
Input Parameters
  • Input Voltage: 230 VAC
  • Input Voltage Range: 176 V - 300 VAC @ 100% load ± 3%; 110 V- 300 VAC @ 50% load ±3%
  • Connection: Terminal block
  • Input Power Factor: ? 0.99 (with full linear load)
  • Input Frequency Range: 50-60 Hz ±8% auto sensing
  • THD of input current: < 7% at full linear load and normal voltage
Output Parameters
  • Outlets: Terminal block
  • Output Voltage: 230 VAC (adjustable to 220/230/240 VAC) ± 1%
  • Output Frequency: 50 / 60 Hz ± 0.1Hz
  • Frequency synchronisation: 46 to 54Hz
  • Crest factor: 3:01
  • THD of output voltage: < 3% at full linear load; < 5% at full non-linear load
  • AC-AC Efficiency: ?87% @ 100% Load
  • ECO mode: Not Available
  • Converter mode: Available
  • Configurable bypass: Available
  • Overload capacity in Line Mode: 105 - 110% 30 mins, 111 - 130% 5 mins, 131 - 150% 10 sec
  • Overload capacity in Battery mode: 105 - 110% 3 mins, 111 - 130% 30 secs, 131 - 150% 3 sec
Batteries and battery charger characteristics
  • Number of batteries: 16/17/18/19/20
  • Battery capacity: Depending on the capacity of external batteries
  • Battery type: VRLA / Tubular / Lithium-Ion
  • Rated Battery Voltage: 192/204/216/228/240 Vdc
  • Battery Charging current: 4A default ±10% (1A/2A/4A Selectable)
  • Recharge time (to 90%): 9 hours
Communication and management
  • Communications ports: RS232 and USB
  • Connector for network interface: Optional -SNMP/MODBUS/Dry Contacts
Environment conditions
  • Operating Temperature: 0 °C to +40 °C
  • Protection index: IP 20
  • Relative humidity (%): 0% to 95% (non-condensing)
  • Storage temperature: -10 ºC to +50 ºC
  • Noise level at 1 m (dBA): < 58 dBA
Reference directive and standards
  • Safety: IEC 62040-1 & IS 16242 (Part1):2014
  • EMC: IEC 62040-2
  • Performance and test requirements: IEC 62040-3
  • Storage temperature: -10 ºC to +50 ºC
  • Other compliance: CE, RoHS
