Capacity / Rating 2KVA / 1600W
Output Waveform /Power Factor Pure Sinwave / 0.8
Nominal Battery Voltage 24V DC
Battery Charger Boost Based PWM Controlled Multistage ATM (Automatic Trickle Mode) Charging
Recommended Battery Type / Battery AH Tall-Tubular, Flat-Plate Lead Acid Battery / (100AH-180AH)**
Output Frequency / Output Voltage (Battery Mode) 50Hz+0.5Hz / 220+10%
Maximum Charging Current 15A(+3A)
Standard Input Voltage Range (Inverter Mode) 80V~295V
Narrow Input Voltage Range (UPS Mode) 180V~265V
Transfer Time From Mains to Battery (UPS Mode) <15ms
Input Brown Out Voltage 80V+10V

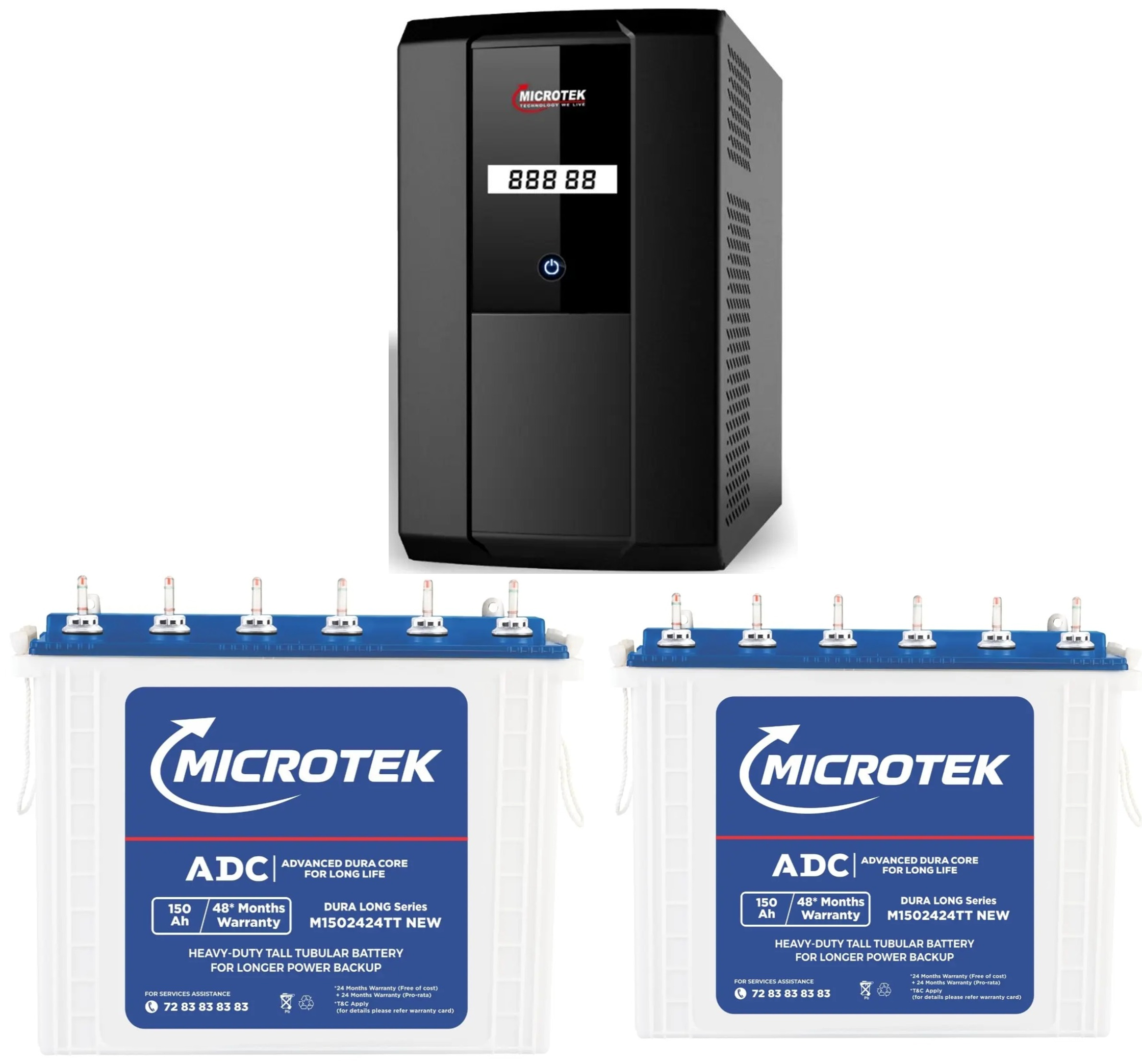

Brand Microtek
Model Number M1502424TT
Battery Rating (Ah) 150 Ah
Battery Type Tall Tubular
Voltage 12V
Electrolyte Volume 28 Litres
Warranty 48 Months (24 Months Flat + 24 Months Pro-Rata)
